Chiller for Pharmaceutical Industry: Complete Guide to Efficient Cooling Systems
The pharmaceutical industry operates under strict quality, safety, and environmental standards. Every stage—from drug formulation to packaging—requires precise temperature control. This is where industrial chillers play a critical role. A well-designed chiller system ensures consistent product quality, regulatory compliance, and efficient operations.
The pharmaceutical industry is one of the most sensitive and highly regulated manufacturing sectors in the world. From drug formulation and API production to vaccines and injectable medicines, every process requires strict temperature control and precision.
However, many pharmaceutical manufacturers focus heavily on raw materials, formulations, and production equipment while overlooking one critical factor — process temperature control.
Without proper cooling:
❌ Chemical reactions can become unstable
❌ Product quality and consistency may be affected
❌ Sensitive ingredients can degrade
❌ Batch rejection and production losses may increase

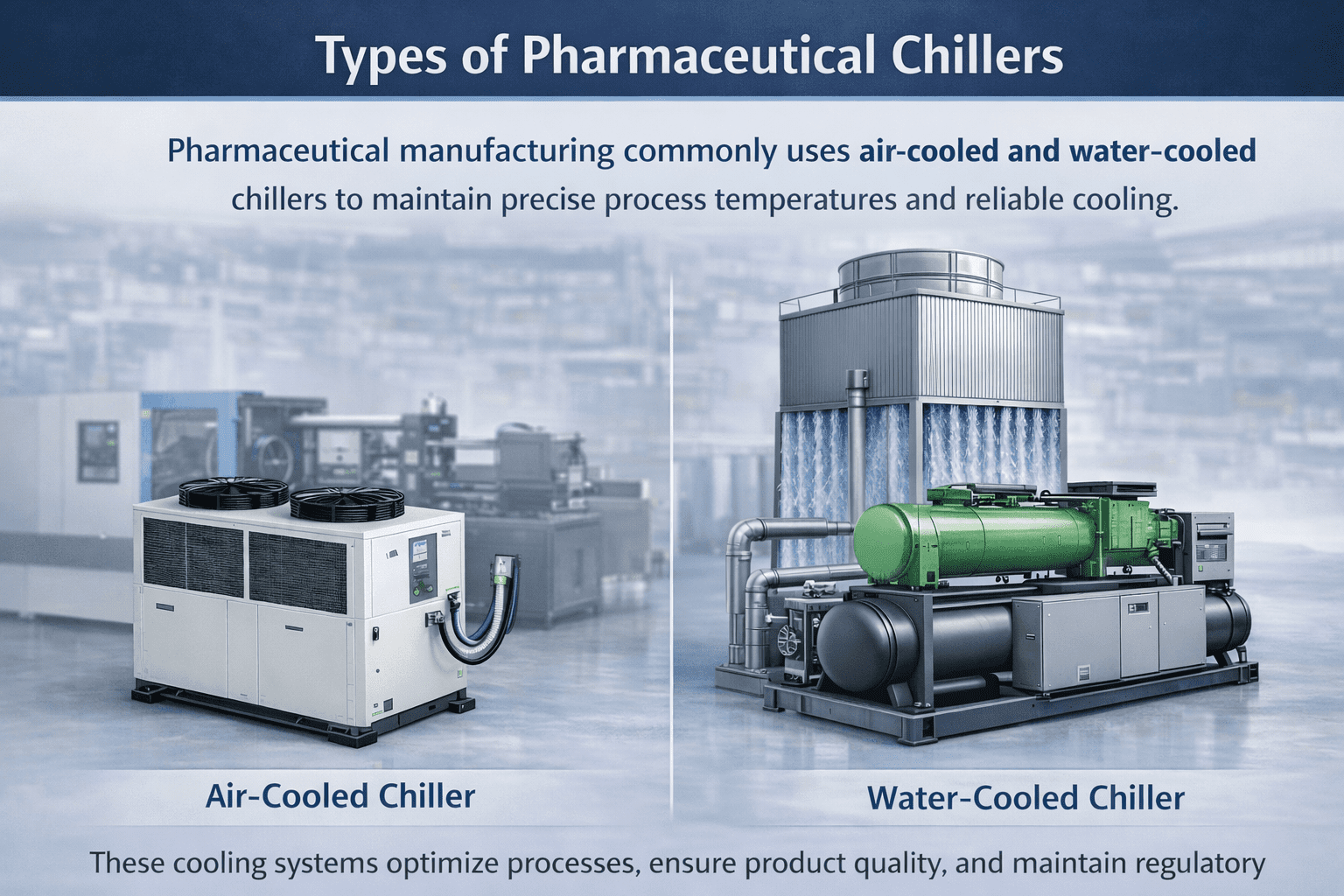

🧊 Types of Chillers Used in Pharmaceutical Industry
Air-cooled and water-cooled chillers are widely used in the pharmaceutical industry for precise and reliable process cooling.
They play a critical role in maintaining stable temperatures, product quality, and GMP compliance
Air Cooled Chiller
Air-cooled chillers remove heat using ambient air through condenser coils and cooling fans. These systems are ideal for pharmaceutical applications where water availability is limited and installation simplicity is required.
Water-Cooled Chiller
Water-cooled chillers use a cooling tower system to remove heat, offering high efficiency and precise temperature control. These are widely used in large pharmaceutical plants where continuous and critical cooling is required.
🧊 Understanding the Pharmaceutical Cooling Process
To understand the importance of a chiller in the pharmaceutical industry, it is essential to first understand how pharmaceutical manufacturing processes work.
Pharmaceutical production typically involves the following stages:
🔷 Raw material preparation
🔷 Chemical reaction / formulation
🔷 Cooling and stabilization
🔷 Filtration, filling, and packaging
Among these stages, temperature control during reaction and cooling is one of the most critical factors.
🔷 Why Temperature Control is Critical in Pharma
During pharmaceutical processing, heat is generated in reactions, mixing, and fermentation. This heat must be removed efficiently to maintain process stability and product integrity.
If cooling is slow or inconsistent, several problems can occur:
❌ Degradation of active pharmaceutical ingredients (API)
❌ Unstable chemical reactions
❌ Variation in product quality
❌ Batch rejection and material loss
❌ Increased production time and cost
🔷 Why Chillers Are Important for Pharmaceutical Industry
Many small-scale units initially depend on cooling towers or ambient water systems. While these may work for basic cooling, they cannot provide the precision and stability required in pharmaceutical manufacturing.
A properly designed pharmaceutical chiller offers several critical advantages:
🔹 1. Precise Process Temperature Control
Pharmaceutical processes require highly accurate temperature control.
✅ Maintains stable temperature during reactions
✅ Prevents overheating of sensitive compounds
✅ Ensures consistent product formulation
🔹 2. Improved Product Quality
A chiller ensures uniform and controlled cooling throughout the process.
✅ Enhances product consistency and purity
✅ Prevents degradation of ingredients
✅ Meets strict pharmaceutical quality standards
🧊 Process of Pharmaceutical Cooling using a Water-Cooled Chiller
Step-by-Step Working Process
🔹 Heat Absorption (Process Cooling)
✅ Chilled water at 7°C – 10°C circulates through pharmaceutical equipment such as reactors, fermentation tanks, and process vessels.
✅ This chilled water absorbs heat generated during chemical reactions, mixing, or fermentation.
✅ Helps maintain precise and controlled process temperature, which is critical for product quality.
🔹 Heat Transfer (Chilled Water Return)
✅ After absorbing heat, the water temperature rises to 12°C – 15°C.
✅ The heated water returns to the chiller through the chilled water return line.
✅ Ensures continuous removal of heat from sensitive pharma processes.
🔹 Heat Removal (Evaporator in Chiller)
✅ Inside the evaporator, refrigerant absorbs heat from the return water.
✅ The water is cooled back to 7°C – 10°C.
✅ This cooled water is recirculated to maintain stable processing conditions.
🔹 Heat Rejection (Condenser Section)
✅ The heated refrigerant transfers its heat to the condenser water system.
✅ This step ensures efficient removal of heat from the refrigeration cycle.
✅ Maintains consistent chiller performance in continuous pharma operations.
🔹 Cooling Tower Heat Dissipation
✅ The condenser water carrying heat flows to the cooling tower.
✅ Heat is rejected to the atmosphere through evaporation and air flow.
✅ The cooled condenser water returns to the chiller for reuse.
🔹 Continuous Cooling Cycle
✅ Continuous circulation of chilled water, refrigerant, and condenser water ensures:
Stable temperature control for pharma processes
Consistent drug quality and formulation accuracy
Safe and reliable operation under GMP conditions
Improved production efficiency and reduced downtime
🔥 Key Advantage in Pharma Industry
✅ Prevents overheating of sensitive reactions
✅ Ensures product stability and compliance
✅ Supports continuous manufacturing processes
✅ Maintains cleanroom and process cooling standards

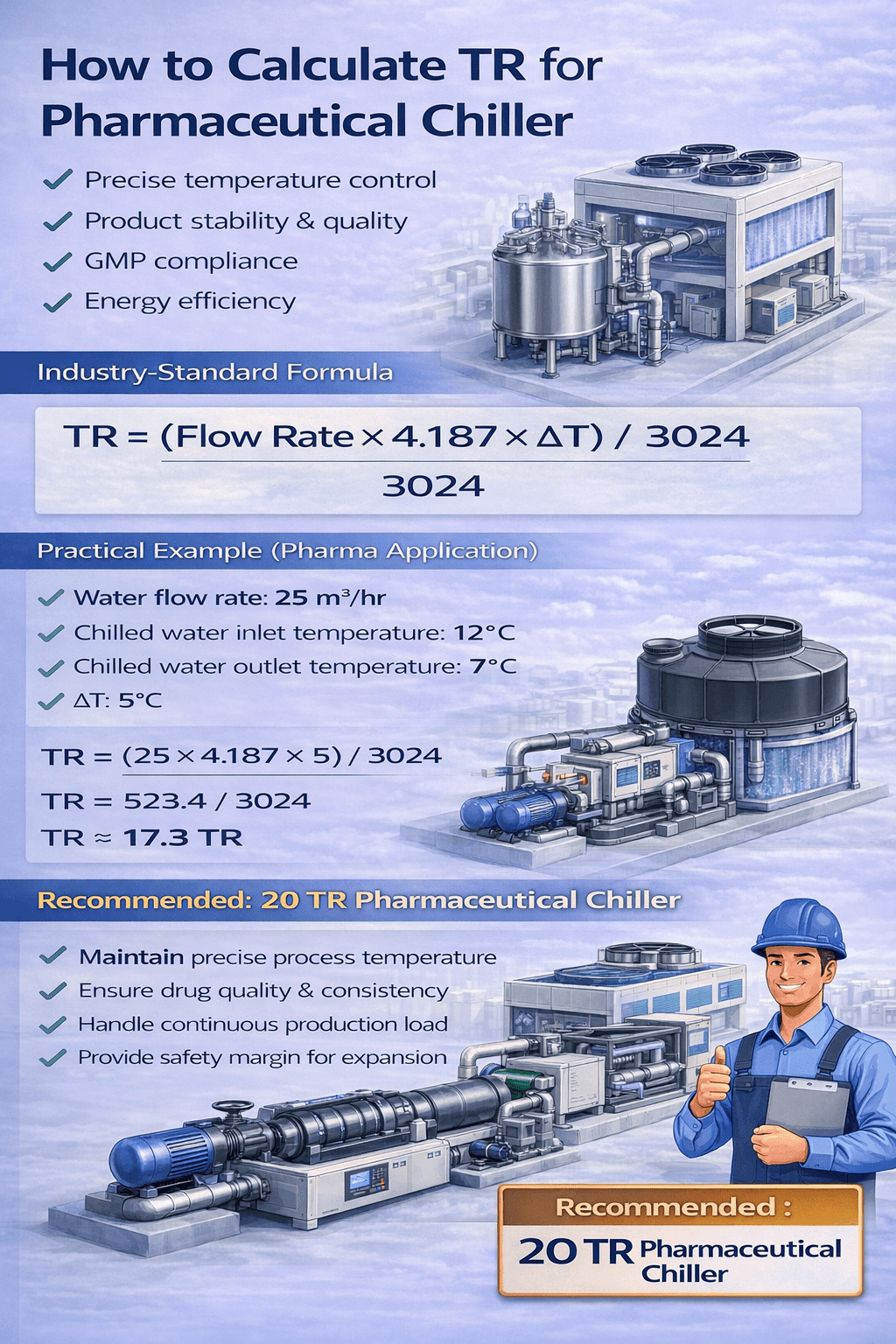

How to Calculate TR for Pharmaceutical Chiller (with Example)
🔷 Industry-Standard Formula Section
Use this formula block (center highlight box):
🔷 Practical Example (Pharma Application)
📌 Application:
Cooling for Pharmaceutical Reactor & Fermentation Process
🔷 Given Data (Checklist Style)
✔ Water Flow Rate = 25 m³/hr
✔ Chilled Water Inlet Temp = 12°C
✔ Chilled Water Outlet Temp = 7°C
✔ Temperature Difference (ΔT) = 5°C
🔷 TR Calculation Section
TR = (25 × 4.187 × 5) / 3024
TR = 523.4 / 3024
TR ≈ 17.3 TR
👉 Recommended Chiller = 20 TR Pharma Chiller
🔷 Bottom Recommendation Section
✅ A 20 TR Pharma Chiller is recommended to:
• Maintain precise process temperature
• Ensure drug quality & consistency
• Handle continuous production load
• Provide safety margin for expansion
Request For Free Consultation
Request a Free Consultation from a Leading Chiller Manufacturer
“Get technical consultation from a certified chiller manufacturer and supplier.
We help you select the right chiller system for maximum efficiency and precise temperature control.“
Key Components & Applications
Water-cooled scroll chillers used in the pharmaceutical industry are designed for high precision cooling, reliability,
and GMP compliance, ensuring consistent product quality and safe processing.
Key Components of a Pharmaceutical Chiller:
A well-designed pharma chiller consists of the following major components:
🔹 Scroll Compressors
✅ High reliability for continuous operation
✅ Better part-load efficiency
✅ Smooth and precise capacity control
✅ Reduced risk of process interruption
🔹 Shell & Tube Evaporator
✅ Efficient heat transfer performance
✅ Stable chilled water temperature
✅ Hygienic design for pharma standards
✅ Easy maintenance and cleaning
🔹 Shell & Tube Condenser
✅ High heat rejection efficiency
✅ Works with cooling tower systems
✅ Improves overall system performance
✅ Energy-efficient operation
🔹 Expansion Valve
✅ Accurate refrigerant flow control
✅ Stable cooling performance
✅ Protects sensitive pharma processes
🔹 Advanced Control Panel
✅ Precise temperature control (±1°C)
✅ Safety alarms and protections
✅ Data logging for GMP compliance
✅ Energy optimization & automation

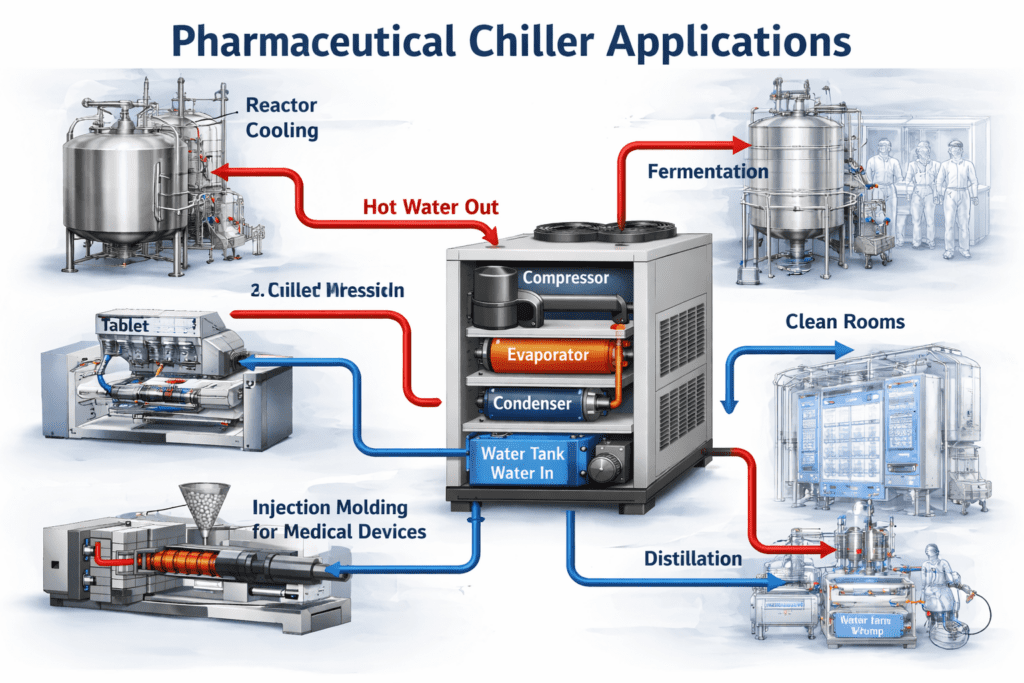

🏭 Typical Applications of Pharmaceutical Chillers
Pharmaceutical chillers are widely used in applications where temperature accuracy and process stability are critical:
💊 Drug Manufacturing & Formulation
✅ Maintains controlled process temperature
✅ Ensures product consistency and stability
🧪 Reactors & Fermentation
✅ Controls exothermic reactions
✅ Maintains ideal fermentation conditions
💉 Sterile & Injection Areas
✅ Supports cleanroom cooling systems
✅ Maintains required temperature & humidity
🧴 API Production
✅ Precise cooling for sensitive reactions
✅ Prevents degradation of active ingredients
🏥 Cleanroom & HVAC Systems
✅ Supplies chilled water to AHU systems
✅ Ensures GMP-compliant environment
🍶 Pharma Packaging & Storage
✅ Maintains safe storage temperature
✅ Protects product quality during packaging
